Lab 2 Overview

Procedure

• Configurations and Setup

  The first part of the lab was setting up our environment and installing the required dependencies. Following the steps listed on this page, Python3 was installed, a virtual environment for the class was created, and the packages used for this lab were successfully installed.
  After this, the files provided needed to be edited to reflect the correct board, which would be done through the configuration.yaml file. Connecting the artemis board to our IDE resulted in the serial monitor printing out the correct MAC address, which was then inserted into the config file so that our python application could communicate with our board. Now that a successful connection was established between the Artemis board and the computer, the rest of the tasks could be accomplished.

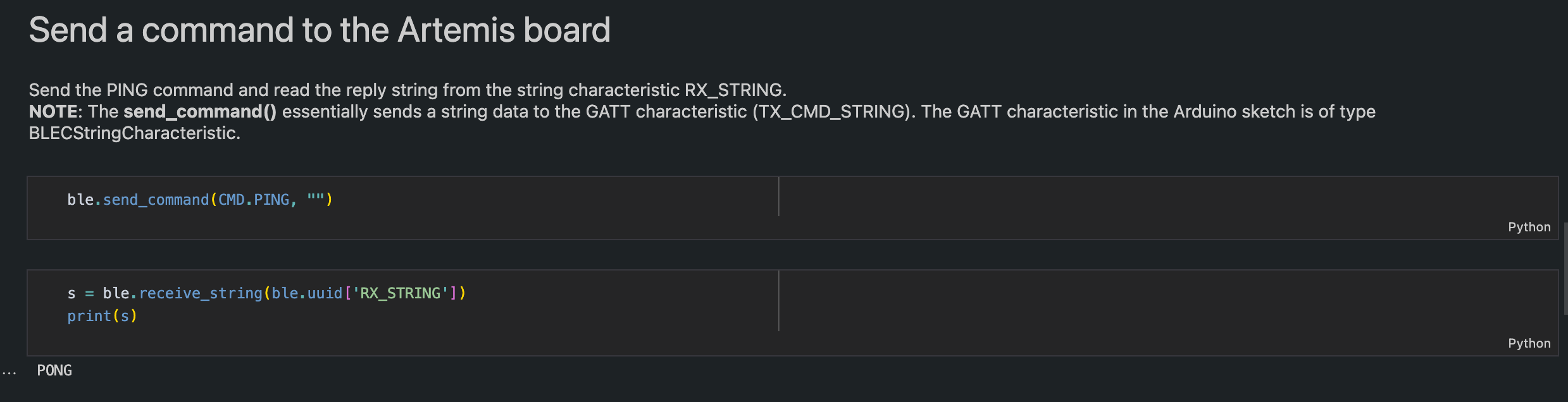

  Before moving onto the first task, we still need to test out that the connection was properly established. Although the connection status did correctly print out the MAC addresses for the respective devices, we can solidify our assurance by sending and receiving basic commands between our two devices. Below is a picture of the "Ping" command that would send our board a command, and receive back a string.


• First Task

  The first task was a simple echo command. The computer would send the echo command with a string, and would receive back the string padded with a prefix and a postfix.


                  case ECHO:
                    char char_arr[MAX_MSG_SIZE];
                    // Extract the next value from the command string as a character array
                    success = robot_cmd.get_next_value(char_arr);
                    if (!success)
                        return;
                    tx_estring_value.clear();
                    tx_estring_value.append("ECHO O o ");
                    tx_estring_value.append(char_arr);
                    tx_estring_value.append(" Did you hear that?");
                    tx_characteristic_string.writeValue(tx_estring_value.c_str());
                    Serial.println(tx_estring_value.c_str());

                    break;

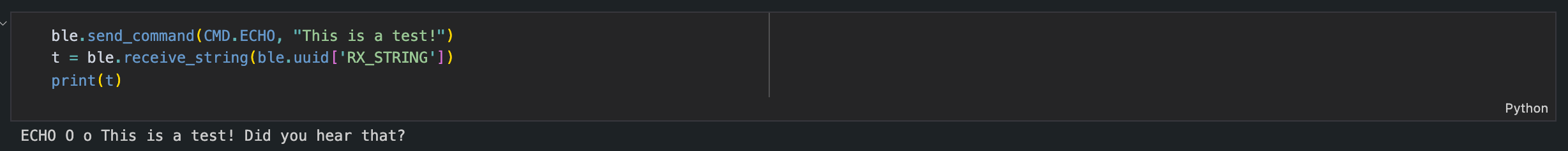

  The code for our echo command was pretty straightforward to implement. We initialize a variable that will hold the message sent along with the command. We clear our estring to make sure that it is properly initialized to be used in our echo command, and firstly append our prefix, followed by the message stored in our char_arr variable, and finally append a postfix. We set our characteristic string to be this new string that we concatenated, and also print to the serial monitor to check in real time if the code we wrote is correct. On the python side of things, we then receive the string that is stored in our tx_characteristic_string variable, and print it to the display.


• Second Task

  The second task was a task that is very similar to an example command provided to us. In the example, we would send two ints, and in this command, we are going to send three floats. The implementation of this command is as follows:


                    case SEND_THREE_FLOATS:
                      float float_a, float_b, float_c;

                      success = robot_cmd.get_next_value(float_a);
                      if (!success)
                          return;

                      success = robot_cmd.get_next_value(float_b);
                      if (!success)
                          return;

                      success = robot_cmd.get_next_value(float_c);
                      if (!success)
                          return;

                      Serial.print("Three floats: ");
                      Serial.print(float_a);
                      Serial.print(", ");
                      Serial.print(float_b);
                      Serial.print(", ");
                      Serial.print(float_c);
                    break;

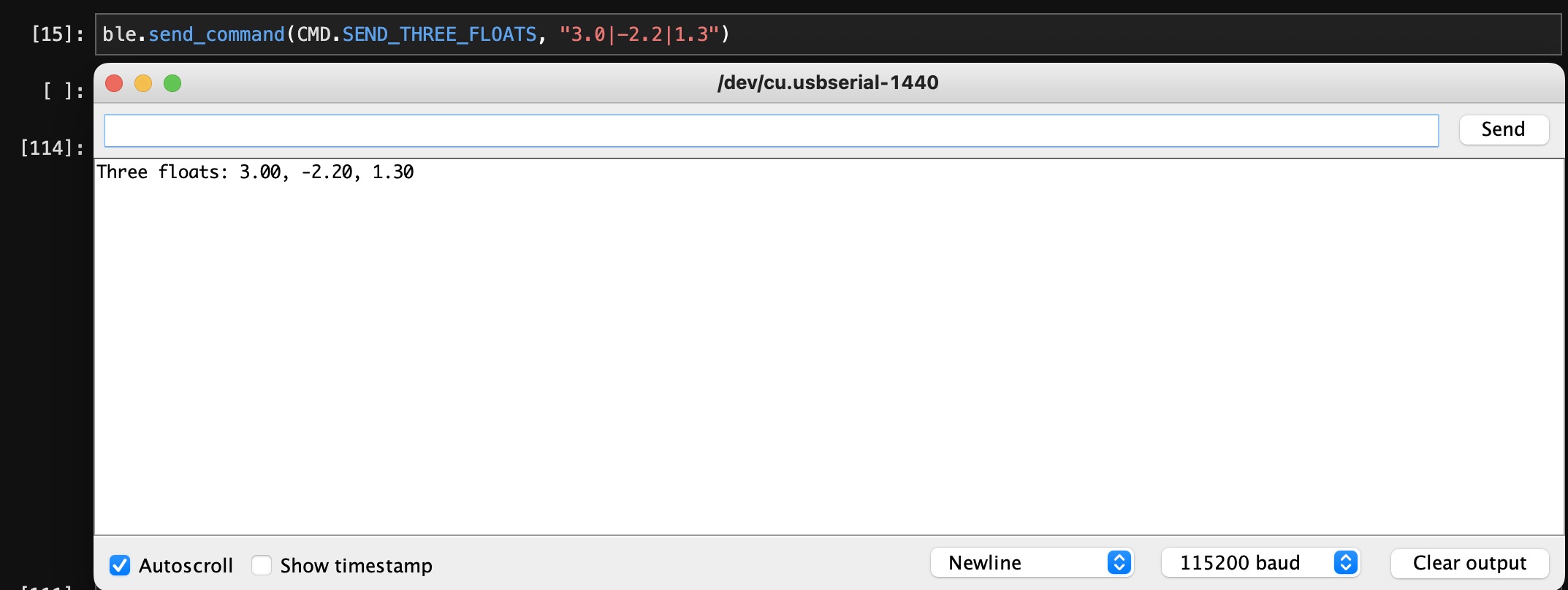

  We initialize three float variables, and correctly assign them based on the inputs to our command (which is parsed by our get_next_value method). We then show that our board has access to these threee floats by printing it to the serial monitor.


• Final Task

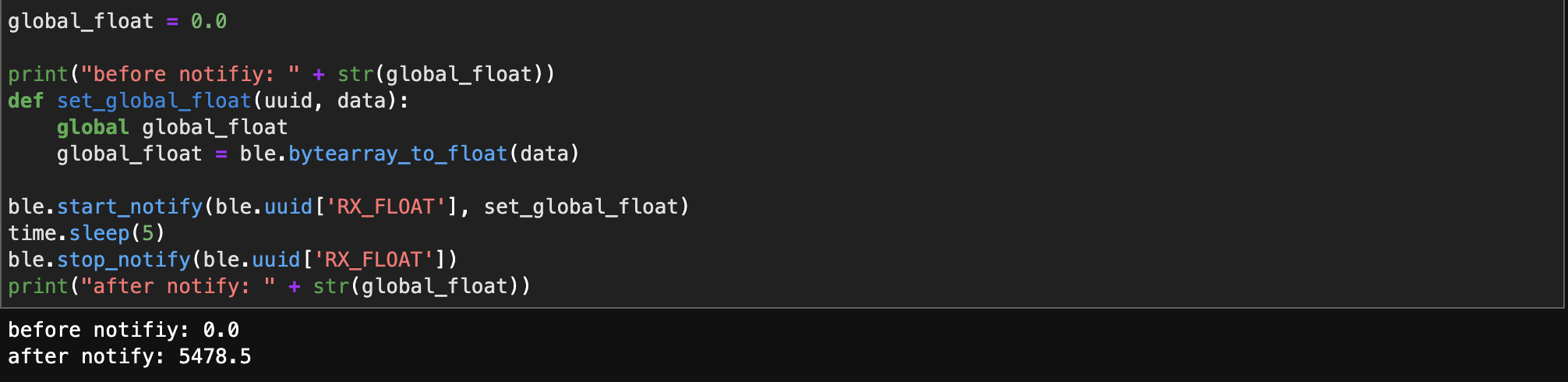

  The final task involves setting up a notification handler to receive a float value from the artemis board, and to store that float value using a callback function. The implementation was a pretty simple task once you know what needs to be done. We initialize a global variable, change that variable within a function, and call this function whenever our subscribed variable changes.


• Float vs String
